Energy Saving 25KW Medium Frequency Induction Furnace
1. Power Supply
1.1 The industrial metal melting furnace adopts IGBT power device and unique frequency conversion technology to
operate stably and provide higher reliability and durability. The industrial metal melting furnace has the function of constant
current and constant power control, which greatly optimizes the metal heating process, realizes efficient and fast heating, and
gives full play to the advantages of the product. Under the same conditions, it has twice the power saving than the traditional
SCR medium frequency. With 100% load design, the industrial metal melting furnace can work continuously for 24 hours
and improve heating quality.
1.2 The industrial metal melting furnace main power devices are all German Siemens brands, and the main electronic
components are imported products (Motorola (diode), NEC (triode), ST (three terminal voltage regulator), FAIRCHILD,
ON etc., which make them work stably and have higher reliability and durability.
1.3 The industrial metal melting furnace has alarm function and fault detection function, such as fault state protection
and display including overcurrent, overvoltage and water shortage, etc.
2.Main technical Parameters
| Model | 25KW | Capacity | 5KG steel | | Input power | 3 phase 380V 50HZ | Input voltage range | 340-480V | | Output control mode | Constant current mode | Melting cycle | 30min per cycle | | | Constant power mode | Holding time | 1-99 seconds (auto mode) | | Output oscillation frequency | 2-20KHZ | Cooling water flow | Water flow >7.5Lmin | | Heating oscillation current | 1-100A | Connecting line | 1.5 meters | | Insulation oscillation current | 200-2400A | Heating time | 1-99 seconds (auto mode)) | |
3.Model Selection Table for Tilting Type Industrial Metal Melting Furnace
| Model/specification | Maximum input power | Steel/stainless steel | Brass/gold/ Silver | Aluminum/aluminum alloy |
| WDL-15KW | 15KW | 3KG | 10KG | 3KG |
| WDL-25KW | 25KW | 5KG | 20KG | 5KG |
| WDL-35KW | 35KW | 10KG | 30KG | 10KG |
| WDL-45KW | 45KG | 18KG | 50KG | 18KG |
| WDL-70K | 70KW | 25KG | 100KG | 25KG |
| WDL-90KW | 90KW | 40KW | 120KW | 40KW |
| WDL-110KW | 110KW | 50KG | 150KG | 50KG |
| WDL-160KW | 160KW | 100KG | 250KG | 100KG |
4. Supply Scope
- Heating power source, 1 set;
- Foot switch, 1 pc;
- Connection wire 2pcs; single wire 1 pc;
- Furnace body 1set; flexible connection cable 2pcs;
- Protective cap 1 set; protective gloves 1 pair;
- User manual 1 copy;
5. Company Info
Wuxi Wondery Trading Co., Ltd is a comprehensive supplier of melting furnaces. We have induction melting
furnaces, and gas or oil fired melting furnaces. The industrial metal melting furnaces can be used to melt copper, zinc, aluminum,
lead, tin, etc.
Industrial Medium and Large Capacity Induction Metal Melting Furnaces that we Supply:
Product Tags:
|
|

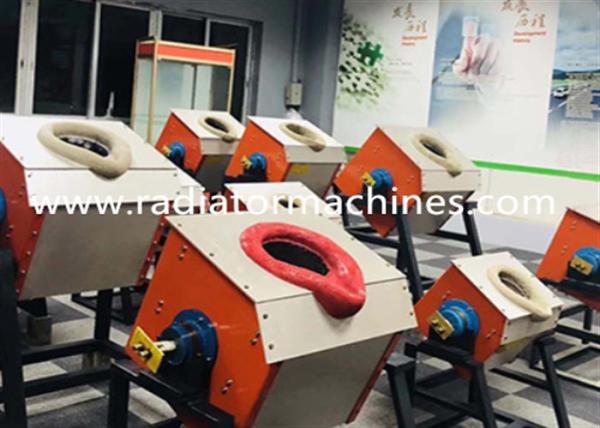

25KW Medium Frequency Industrial Induction Metal Melting Furnace 5KG Capacity for Steel Copper Aluminum Images
|
