Natural Gas Fired Bogie Hearth Furnace Customized Size Stable Performance

Name: Natural Gas Fired Bogie Hearth Furnace Customized Size Stable Performance
Brand: WONDERY
Price: 1 USD

Wholesale Natural Gas Fired Bogie Hearth Furnace Customized Size Stable Performance from china suppliers

Place of Origin : Jiangsu, China (Mainland)

Brand Name : WONDERY

Certification : ISO CERTIFICATE

Supply Ability : 100 Sets per Year

Packaging Details : nude package or steel case package, suitable for sea transportation

MOQ : 1 Set/Sets

Price : Negotiable

Model Number : CE

Delivery Time : 60 Days

Name : Bogie Hearth Furnace

Warranty : 1 Year

PLC control : Siemens S7-200 PLC

temperature mechanism : 1100 degree celcius

bogie speed : 6-8m/min

temperature uniformity : +/- 10 degree celcius

Contact Now

Natural Gas Fired Bogie Hearth Furnace Customized Size Stable Performance

Product Application

Hot sale Gas Fired Bogie Hearth Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.

SPECIFICATIONS FOR Hot sale Gas Fired Bogie Hearth Furnace
Temperture contral system	Rated Temperature	℃	1300
	common heating temperature	℃	400-1250
	Furnace body exterior temperature	℃	≤ 55 + room temperature
	Temperature control system precision	℃	≤±1
	Uniformity of furnace temperature	℃	≤±10
Gas burning system	Fuel		natural gas
	Gas calorific value	Kcal/m3	7000
	Gas supply pressure	Mpa	0.05-0.1
Mechanical system	door lifting mechansim		electric hoist
	bogie driving system		reducing motor
	door and bogie moving speed	m/min	6-8
Refractory lining	hearth lining		aluminum silicate fiber
	bogie lining		refractory brick

Model Table

Hearth Size (mm) LWH	Max Temperature (Degree Celcisu)	Max Loading Capacity (Kg)
950×500×450	950	500
1100×600×400	950	800
1200×600×450	950	1000
1500×750×600	950	1500
1800×900×600	950	2500
1800×900×650	950	3500
2000×900×700	950	4000
2000×1000×750	950	4200
2200×1000×800	950	5000
2200×1050×750	950	6000
2400×1200×800	950	6500
2500×1300×900	950	7000
2500×1400×900	950	8000
2800×1500×900	950	9000
3000×1500×900	950	10000
3000×1530×950	950	11000
3200×1530×950	950	12000
3500×1500×1200	950	15000
4000×1500×1200	950	18000
4500×1500×1200	950	20000
4500×1600×1200	950	22000
5200×1500×1200	950	25000
5500×1500×1200	950	28000
6000×1500×1200	950	30000
6500×1800×1200	950	35000
7000×1800×1200	950	38000
7200×2000×1200	950	40000
7500×1800×1800	950	42000
8500×2000×1500	950	52000
9000×2200×1600	950	60000

Notes: The bogie hearth furnace can be customized based on customer's requirement.

Main Features

1) The bogie hearth furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

3) Heating components: high temperature resistance alloy wires and strips.

4) Low noise, energy-friendliness, and stable performance.

5) Advanced CAD design.

6) Years of experiences in heat treatment process.

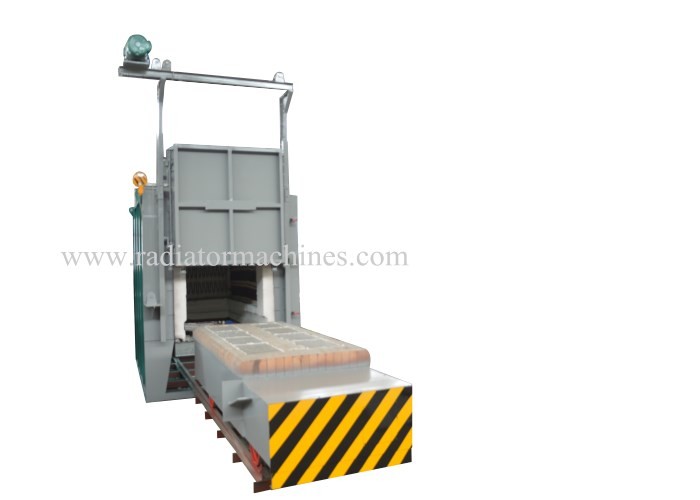

Picture of Electric Resistance Bogie Hearth Furnace
