Gas Fired Metal Melting Melting Furnaces Lead Powder 3500 KGS

Name: Gas Fired Metal Melting Melting Furnaces Lead Powder 3500 KGS
Brand: WONDERY
Price: 1 USD

Wholesale Gas Fired Metal Melting Melting Furnaces Lead Powder 3500 KGS from china suppliers

Place of Origin : Jiangsu, China (Mainland)

Brand Name : WONDERY

Certification : CE CERTIFICATE

Supply Ability : 5 Set/Sets per Month

Packaging Details : Plywood Case Suitable for Sea Transportation

MOQ : 1 Set

Price : Negotiable

Delivery Time : 60 Days

Model Number : WR-ZL-3500

Name : New

Power(W) : 11KW

Dimension(L*W*H) : 2620*2110*2170mm

Weight : 12T

capacity : 3500kgs

refractory lining life : 5 years on average

Contact Now

Gas Fired Metal Melting Melting Furnaces Lead Powder 3500 KGS

Product Application

The rotary metal melting furnace is used to melt the Lead powder& Aluminum Power
The furnace body is of an oval shape. The two sides of the hearth are built with once-forming refractory material

with a high strength. The furnace lining is comprised of refractory layer, heat preservation layer, and heat insulation layer.

The hearth is built with high strength once-forming casting material. The hearth is equipped with one fire blocking ring which

could prolong the flame stay period, increase melting speed and reduce energy consumption.

The rotary metal melting furnace has the features of high performance, air tightness, high strength, and long service life.

The heat preservation layer and insulation layer are both of ceramic fiber material. The furnace has a fast temperature

rising speed, a good heat preservation, and a low energy consumption.
The burning system is comprised of the fan, the solenoid valve, the igniter, and the flame monitor. Connect the burner

with power, and the burner will work.

Supply Scope of Metal Melting Furnace

Furnace body, 1 set

Automatic temperature controller, 1 set

Driving mechanism, 1 set

Diesel oil burning system, 1 set

User manual, 1 copy

Specifications For High Quality Rotary Metal Melting Furnace 3500kgs
Burning System	Gas consumption	m3/ton lead	40-50
	Gas supply pressure	Mpa	≤0.1
	Gas burner power	Kcal	400,000
Main performance parameters	Melting pool capacity	kg lead power	3500
	Fan motor	KW	3
	Rotary motor	KW	7.5
Furnace body	Melting cycle	hour	2 (including charging and discharging time)
	Overall Dimensions	mm	262021102170
	Furnace weight	kg	12000

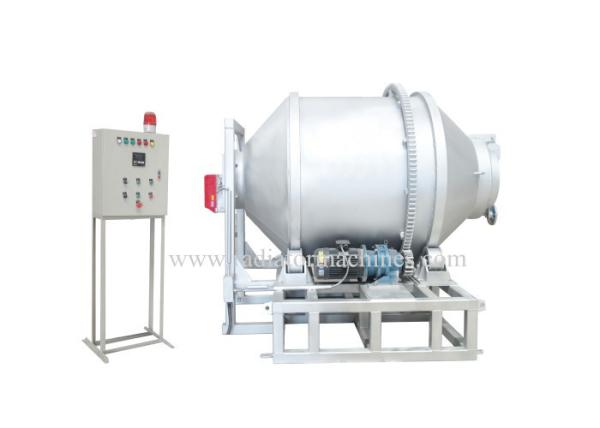

Picture of reveberatory metal melting furnace:

Gas Fired Metal Melting Melting Furnaces Lead Powder 3500 KGS
